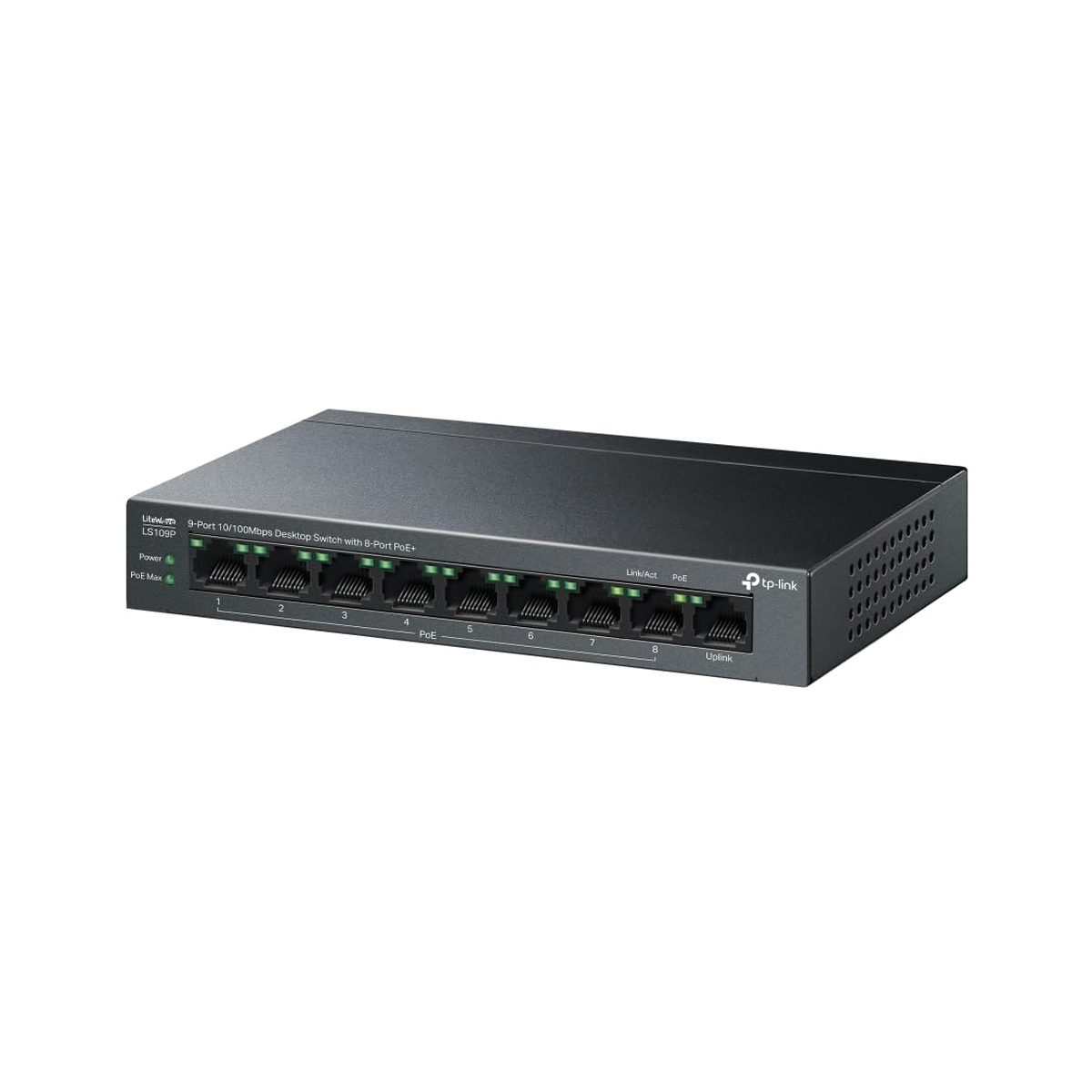

Tplink Lightwave 9 Port 10/100Mbps Desktop Poe+ Switch Ls109P

TP-Link LS109P 9-Port 10/100Mbps PoE+ Desktop Switch is designed to expand your network efficiently. With eight 802.3af/at-compliant PoE+ ports, it delivers both data and power over a single cable, supporting devices like IP cameras, access points, and IP phones.FGTECH STORE+13Tech Titan+13TP-Link+13

The switch offers a total PoE power budget of 63W, with up to 30W per port. Its Extend Mode increases PoE transmission distance up to 250 meters, ideal for large-scale surveillance deployments.FGTECH STORE+10JG Superstore+10TP-Link+10

PoE Auto Recovery ensures continuous operation by automatically rebooting unresponsive devices. The Isolation Mode enhances network security by separating client traffic, preventing snooping and broadcast storms.WiFi Stock+10TP-Link+10TP-Link+10

With a durable metal casing and fanless design, the LS109P operates silently, making it suitable for various environments. Its plug-and-play setup requires no configuration, simplifying installation.TP-Link

✅ Specifications

• Model Number: LS109P

• Ports: 9× 10/100 Mbps RJ45 (8× PoE+ ports)

• PoE Standard: 802.3af/at compliant

• PoE Budget: 63W total, up to 30W per port

• Transmission Distance: Up to 250m with Extend Mode

• Features:

  • PoE Auto Recovery

  • Isolation Mode

  • Plug and Play

  • Fanless, silent operation

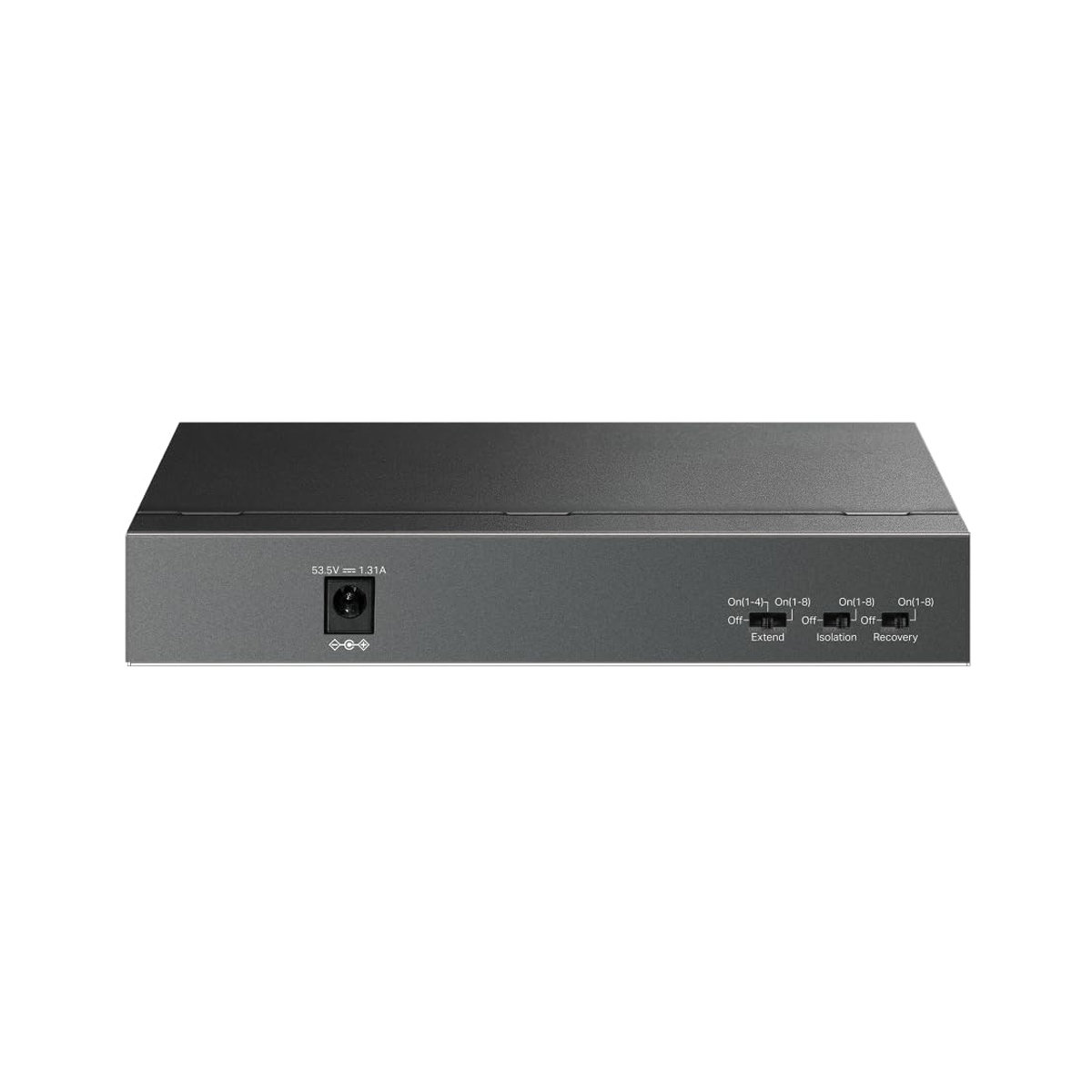

• Power Supply: External adapter (53.5VDC / 1.31A)

• Dimensions: 171×98×27 mm

• Mounting: Desktop or wall-mountingFour Star IT+12TP-Link+12TP-Link+12Omada+13Four Star IT+13TP-Link+13FGTECH STORE+11WiFi Stock+11TP-Link+11WiFi Stock+11Amazon+11TP-Link+11Amazon+6TP-Link+6TP-Link+6Precomp - Server Store+1TP-Link+1

✅ FAQs

Q1: What is the maximum PoE power per port?
Each PoE+ port supports up to 30W, with a total PoE budget of 63W.TP-Link+9WiFi Stock+9FGTECH STORE+9

Q2: Can the LS109P be mounted on a wall?
Yes, it supports both desktop and wall-mounting installations.

Q3: Does the switch require configuration?
No, it features a plug-and-play setup with no configuration needed.TP-Link+3TP-Link+3Amazon+3

Q4: What is the benefit of Extend Mode?
Extend Mode increases PoE transmission distance up to 250 meters, ideal for long-distance deployments.Four Star IT+10TP-Link+10TP-Link+10

Q5: How does PoE Auto Recovery work?
It automatically detects and reboots unresponsive PoE-powered devices to maintain network stability.
