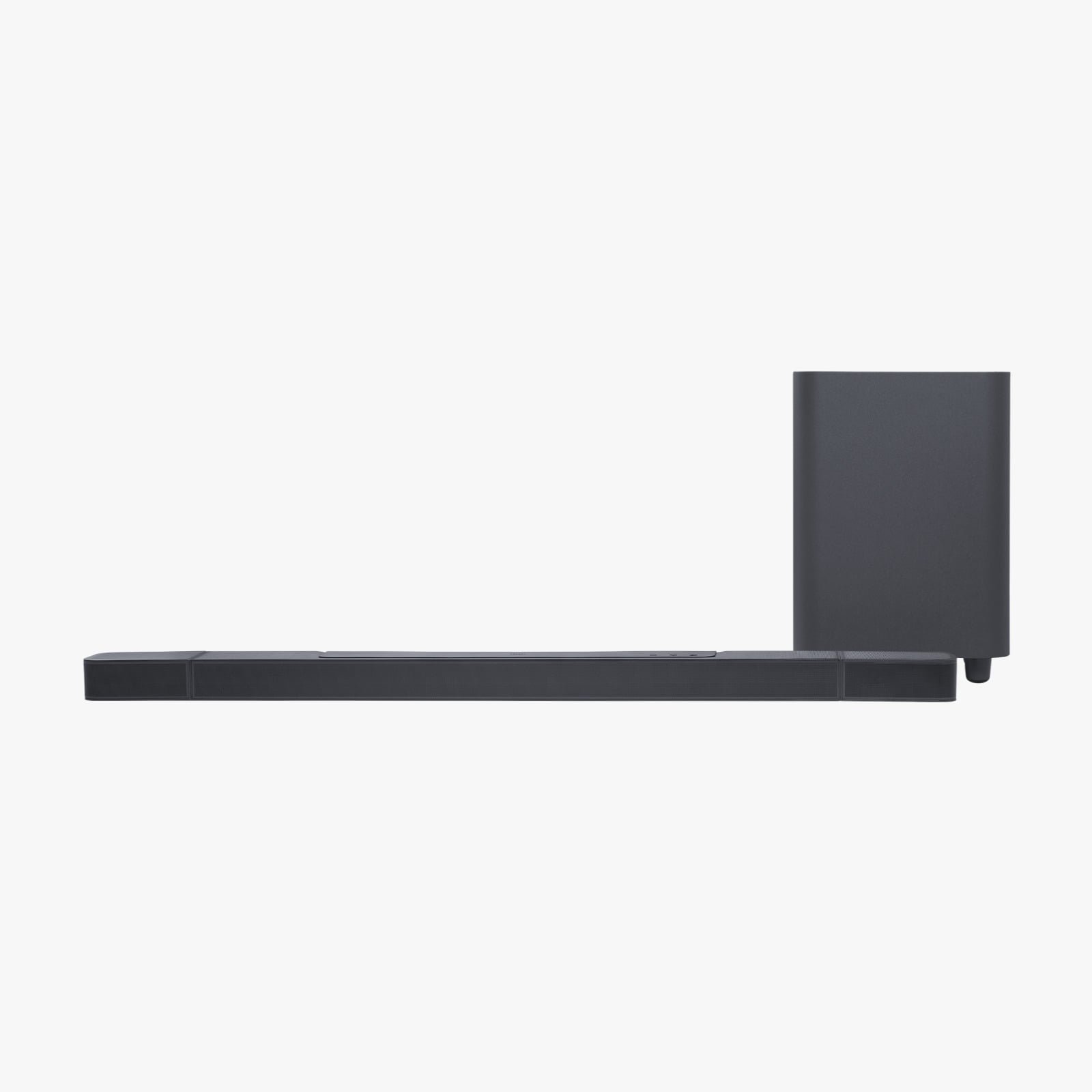

Jbl Sound Bar 7.1.4 Speaker Bar 1000 In Black

Experience movies, music and games with sound that puts you right in the middle of the action, thanks to 880W of total output power and thunderous bass from the 10" subwoofer. The JBL Bar 1000 has MultiBeam™ and four up-firing drivers—two in the bar and two in the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby Atmos® and DTS:X 3D surround sound with a wide, spacious soundstage with no need to draw extra cables. You'll never miss a word with our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you're ready for some music, stream your favorite playlist from AirPlay, Alexa MRM, and Chromecast built-in™ and it'll feel like the band is right there. Have a great night out without leaving your living room.

Model

BAR 1000

Sound system

7.1.4 channel

Power supply

100 - 240V AC, ~ 50/60Hz

Networked standby power

< 2.0W

Operating temperature

0°C - 45°C

Total speaker power output (Max @THD 1%)

880W

Soundbar output power (Max @THD 1%)

440W

Surround speaker output power (Max @THD 1%)

2x 70W

Subwoofer output power (Max. @THD 1%)

300 W

Soundbar transducer

5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer

0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers

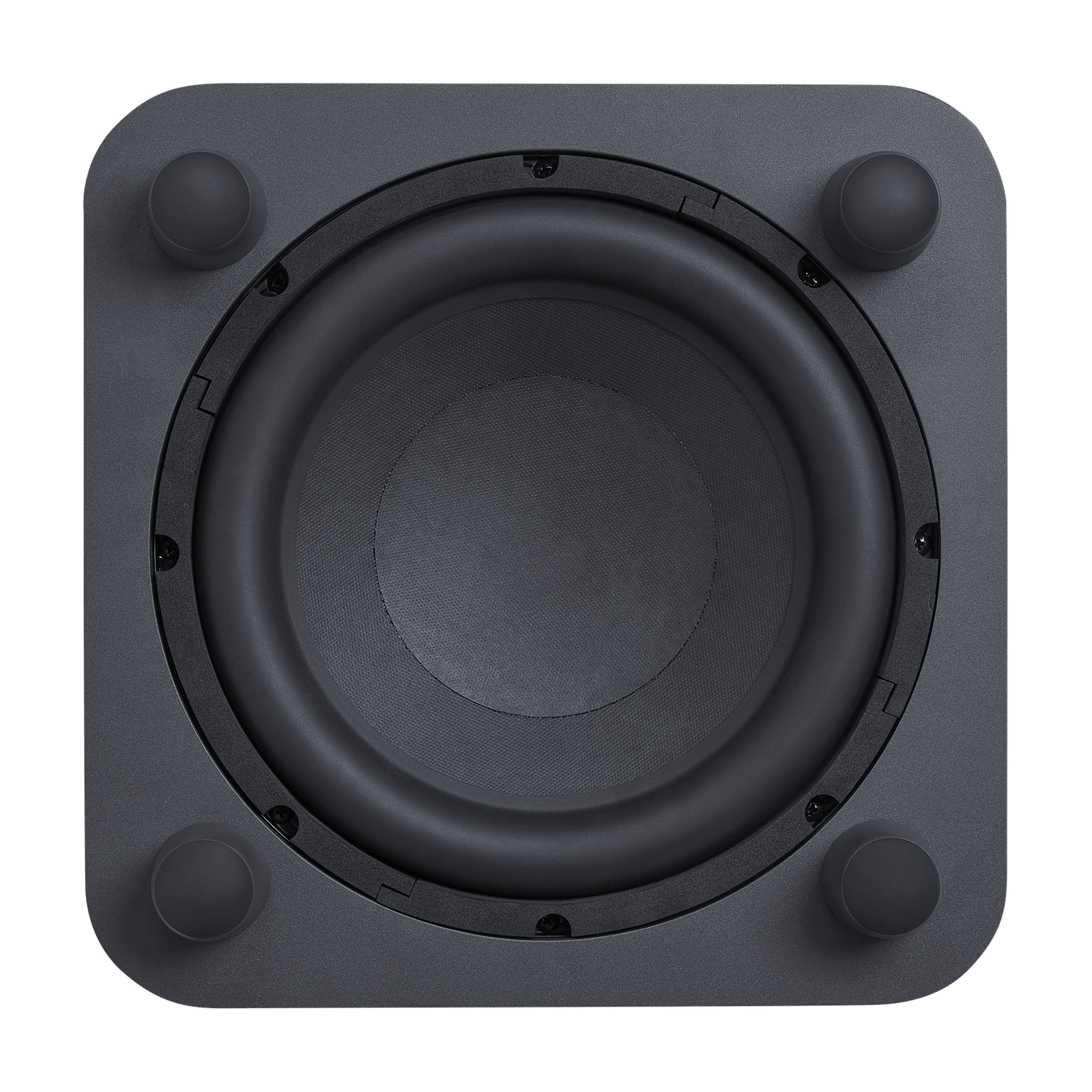

Subwoofer transducer

10” (260mm)

Frequency response

33Hz - 20kHz (-6dB)

Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Total soundbar dimensions (W x H x D)

1194 x 56 x 125mm / 47" x 2.2" x 4.9"

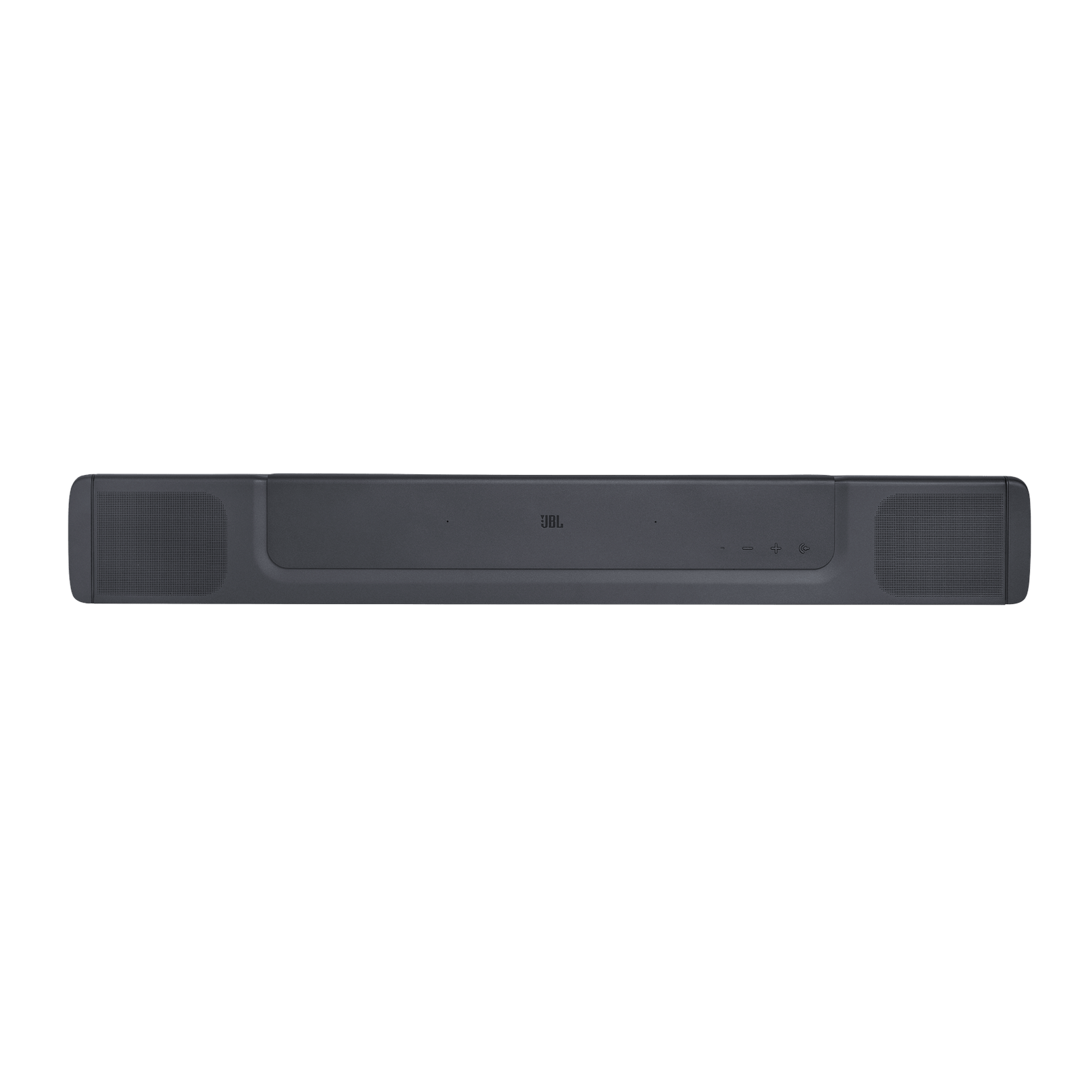

Main soundbar dimensions (W x H x D)

884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"

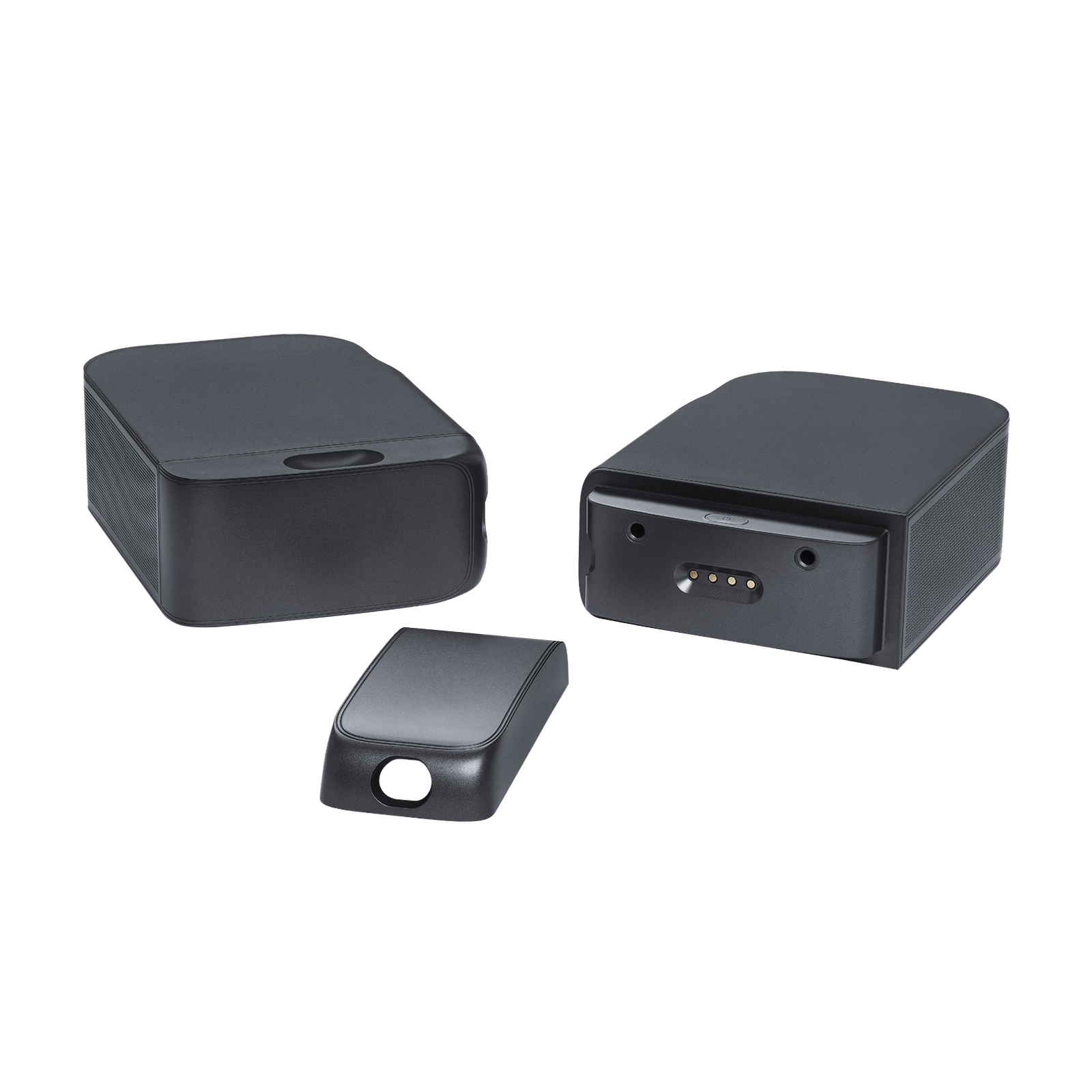

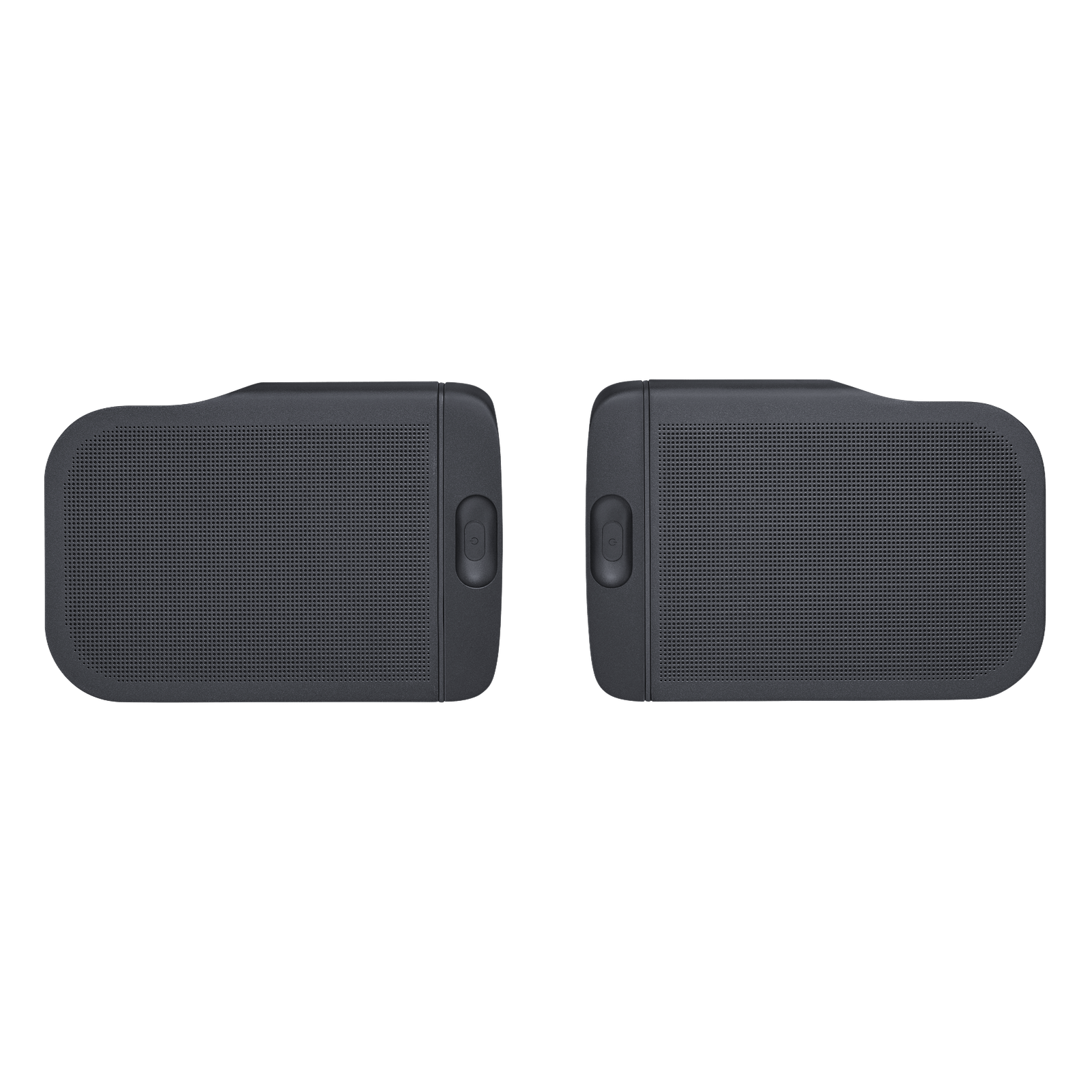

Detachable surround speaker dimensions (each) (W x H x D)

155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"

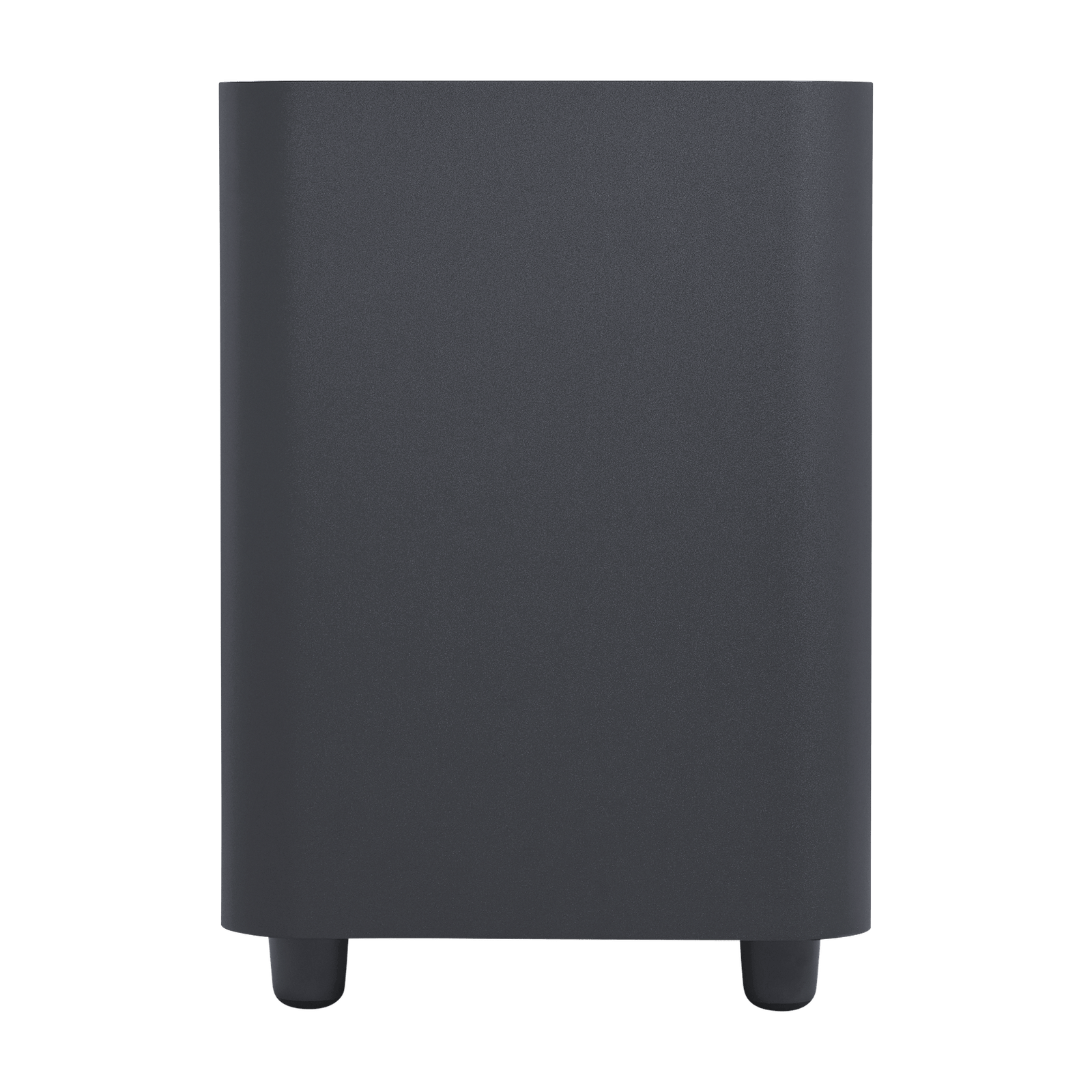

Subwoofer dimensions (W x H x D)

305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight

3.7 kg / 8.2 lbs

Detachable surround speaker weight (each)

1.4kg / 3.1 lbs

Subwoofer weight

10 kg / 22 lbs

Packaging dimensions (W x H x D)

1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"

Packaging Weight

19.4 kg / 42.7 lbs

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file format

MP3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kpbs

Bluetooth version

5.0

Bluetooth profile

A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range

2400MHz – 2483.5MHz

Bluetooth transmitter power

<15dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power

< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range

2406 - 2474MHz

2.4G wireless power

＜10dBm (EIRP）

Lithium battery

3.635V, 3283mAh

HDMI video input

3

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10, Dolby Vision
