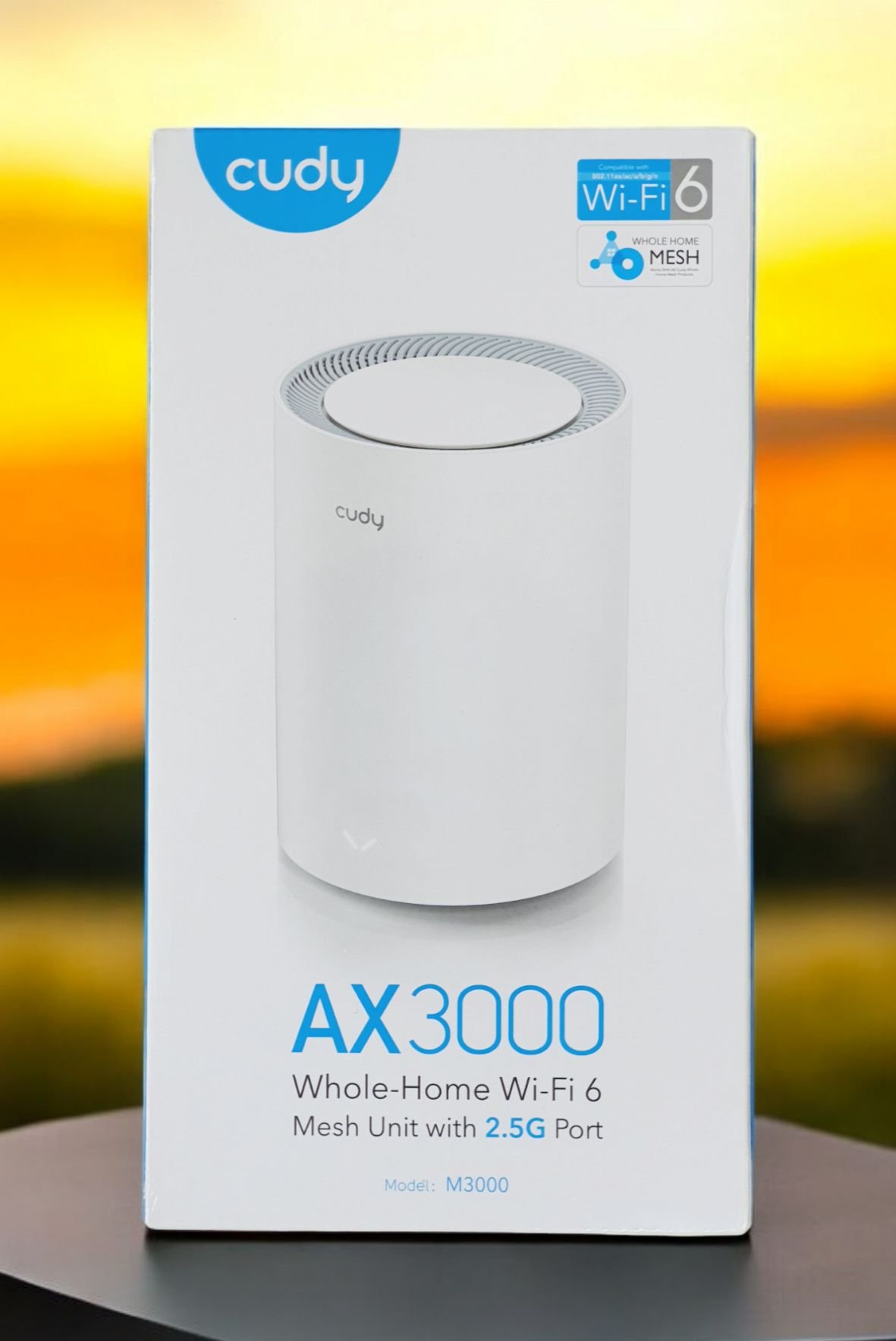

Cudy M-Series Ax3000 Dual-Band Wi-Fi 6 Mesh System (Starlink Wi-Fi Extender, M3000 1-Pack) - Seamless Whole-Home Coverage

 Designed to eliminate dead zones and ensure seamless connectivity, this Starlink Wi-Fi extender is perfect for homes requiring reliable, high-speed connections.

Features

• Wi-Fi 6 Technology: Delivers faster speeds and greater capacity for multiple devices.
• Dual-Band Performance: Supports both 2.4GHz and 5GHz for optimized speed and range.
• Whole Home Coverage: Eliminates dead zones with seamless mesh connectivity.
• Starlink Wi-Fi Extender: Extends coverage for uninterrupted internet throughout your space.
• Easy Setup: User-friendly app for quick installation and management.
• Ideal for Multiple Uses: Perfect for streaming, gaming, video calls, and work-from-home setups.

Upgrade your internet experience with the CUDY M Series AX3000 Dual-Band Wi-Fi 6 Whole Home Mesh System. Whether for gaming, streaming, or work, enjoy faster and more stable connectivity for all your devices.

No-Buffer 4K Streaming. Responsive FPS Gaming.

Enjoy super-responsive gaming and video playback with the top-notch 160 MHz bandwidth and high RAM.

Families, Friends, IoT, All Onboard.

Powerful CPU, DL/UL OFDMA, and MU-MIMO reduce latency while connecting hundreds of devices.

Easy to Use, Versatile Functions

Control Online Time & Content

Regulate your kids' online activities by setting an online time duration for their devices and banning inappropriate web domains.

Secure Personal Network

WPA3 protects your wireless from brute-force attacks. Guest Network separates your own devices and guests' devices to improve security.

VPN Server and Client

Six built-in protocols provide compatibility with 50+ commercial VPN providers and enable you to host your own VPN server.

Know Your Network

The system panel provides intuitive information for you to know network status. Built-in diag-tool helps locate problems and troubleshooting easier.

A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.

---

•  1.3 GHz Dual-Core CPU
•  4-Stream Dual-Band Wi-Fi 6
•  2402 Mbps + 574 Mbps Wi-Fi ¹
•  200 Connected Devices ²
•  Fast Roaming
•  Cudy Mesh, VPN Server and Client
•  Multi-Band Simultaneous Backhaul
•  Cudy App, Cloud Control

Model Version	M3000 1.0
CPU	Chipset	MT7981
	CPU Details	1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	256 MB (2 Gbit) DDR3
Wireless	5 GHz Wi-Fi Speed	2402 Mbps
	2.4 GHz Wi-Fi Speed	574 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	5× Internal
	5 GHz Antenna Gain Max	5.1dBi
	2.4 GHz Antenna Gain Max	4.2dBi
	FEM or PA/LNA	5 GHz: 3× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 200 m (656 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
	Multi-Pack Indoor Coverage	2 Pack: 400 m² (3900 sq ft) 3 Pack: 600 m² (5500 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
Interfaces	2.5G RJ45 Ports	1
	Gigabit RJ45 Ports	1
	Ethernet Notes	The 2.5G port is WAN port, the Gigabit port is LAN port
	LED	System Speed/Link/ACT of Ethernet Port
	Physical Buttons	WPS Button Reset Button
	Power Input	DC Jack
Power	Power Methods	DC
	DC	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop
	Dimension	Φ110×154.5 mm Φ4.33×6.08 inches
	Product Weight	360 g (12.7 oz.)
Package Content	M3000 Power Adapter Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	1-Pack | EU / US: 680 g (23.99 oz.) 3-Pack | EU / US: 1500 g (52.91 oz.) 2-Pack | EU / US: 1100 g (38.8 oz.) 3-Pack | EU / US: 1827 g (64.45 oz.)
	Retail Package Dimension	1-Pack: 145×130×265 mm 5.71×5.12×10.43 inches 2-Pack: 330×130×265 mm 12.99×5.12×10.43 inches 3-Pack: 380×130×265 mm 14.96×5.12×10.43 inches
	Units per Carton	1-Pack: 16 2-Pack: 8 3-Pack: 4
	Carton Dimension	1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches 2-Pack: 55×54.5×35.3 cm 21.65×21.46×13.9 inches 3-Pack: 53.6×40×28.7 cm 21.1×15.75×11.3 inches
	Carton Gross Weight	1-Pack | EU / US: 12.2 kg (26.9 lbs) 3-Pack | EU / US: 9.6 kg (21.16 lbs) 2-Pack | EU / US: 12 kg (26.46 lbs) 3-Pack | EU / US: 8.2 kg (18.08 lbs)
	Carton Net Weight	1-Pack | EU / US: 10.9 kg (24.03 lbs) 3-Pack | EU / US: 8.5 kg (18.74 lbs) 2-Pack | EU / US: 11.5 kg (25.35 lbs) 3-Pack | EU / US: 7.3 kg (16.09 lbs)

Model Version	M3000 1.0
Wireless	Wi-Fi Standards	Wi-Fi 6
	Max Wi-Fi Modulation	1024-QAM
	Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
	Max Capacity	512
	Recommended Client Upper Limit	200
	Max Wi-Fi Channel Width	160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	True
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	true
	WAN Mode	DHCP Static IP PPPOE
	Internet Failover Sequence	WAN WISP
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN	True
	Online Detection	True
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Intenent On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	LED Control	ture
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
