Engineered for home offices and small business environments, this compact yet powerful switch supports high-speed data transfer and efficient power delivery—ideal for powering IP cameras, VoIP phones, access points, and other PoE-enabled devices.

Key Features

• ⚡ 8 Gigabit Ports – Full 10/100/1000 Mbps for ultra-fast and stable connections

• 🔌 4 PoE+ Ports (IEEE 802.3af/at) – Each delivers up to 30W, total 60W power budget

• 🔧 Plug-and-Play Setup – No configuration needed; instant deployment

• 🌍 Compact Desktop Design – Durable and space-saving metal housing

• 💡 LED Status Indicators – Real-time power and network activity monitoring

• 🌱 Energy-Efficient – Smart power management for reduced energy use

• 🔐 Reliable PoE Detection – Automatically identifies PoE devices and prevents overload

• 🧠 Quiet Operation – Fanless design for silent performance in any environment

Whether you're upgrading a small office or building a smart home setup, the CUDY 8-Port Gigabit Desktop Switch with 4-Port PoE+ GS1008P delivers reliable connectivity, simplified installation, and efficient power delivery—all in one compact device. Get seamless, high-speed networking and power where you need it most.

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

PoE Management Made Simple

Prioritize the Callings. Extend the Range.

Prioritize Data Packets on Port 1-2

Connect latency-sensitive clients to ports 1–2 and enable the priority function to ensure their packets are delivered first.

Extend for 250 m Transmission on Port 1-4

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

Exceptional Built-Quality for Stable Operation

Build Robust Systems with Outstanding EMC

Improves service reliability and reduces downtime caused by power surges and ESD.

• ESD: Contact 6kV; Air 8kV
• Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Shielded Ports. Solid Metal Casing.

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

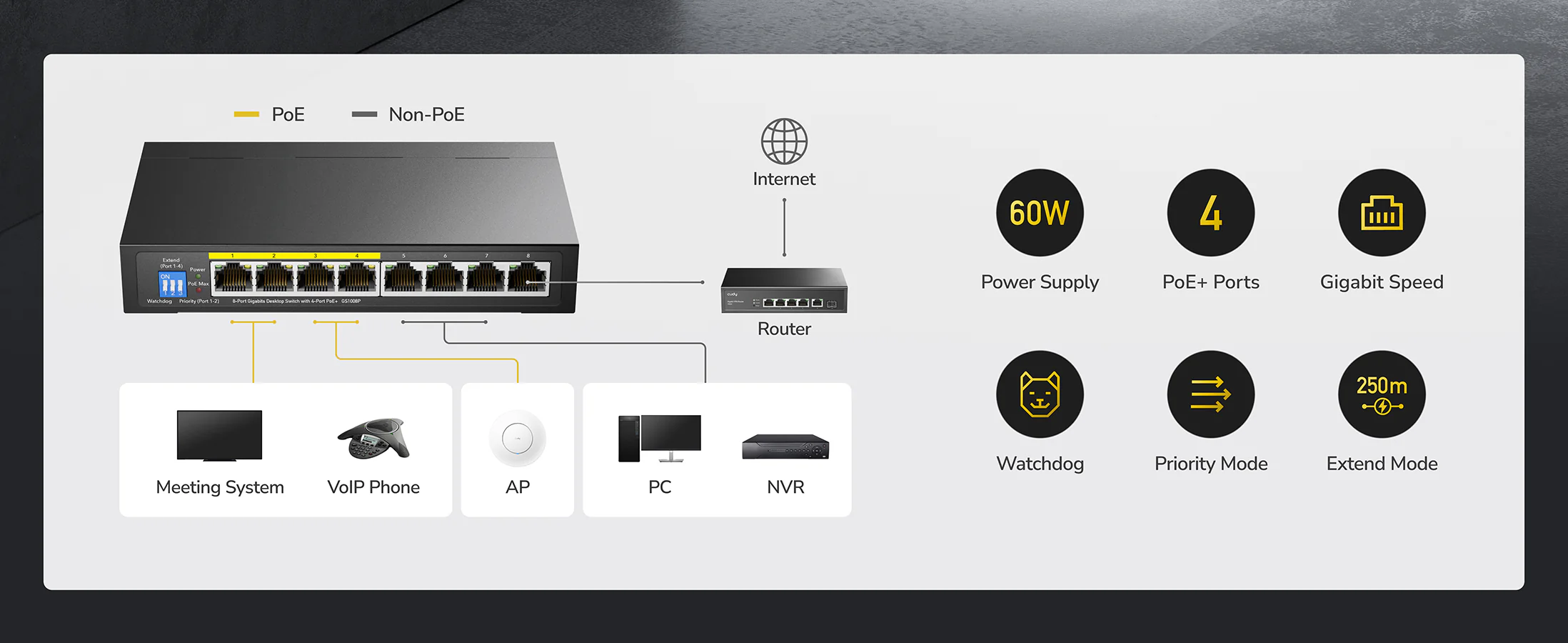

Versatile Scenarios

Surveillance

Office Networking

Campuses Wi-Fi

Accesses and Signages

Wall-Mount Ready

Featuring two mounting hole on the back, allowing you to easily mount the switch on walls.

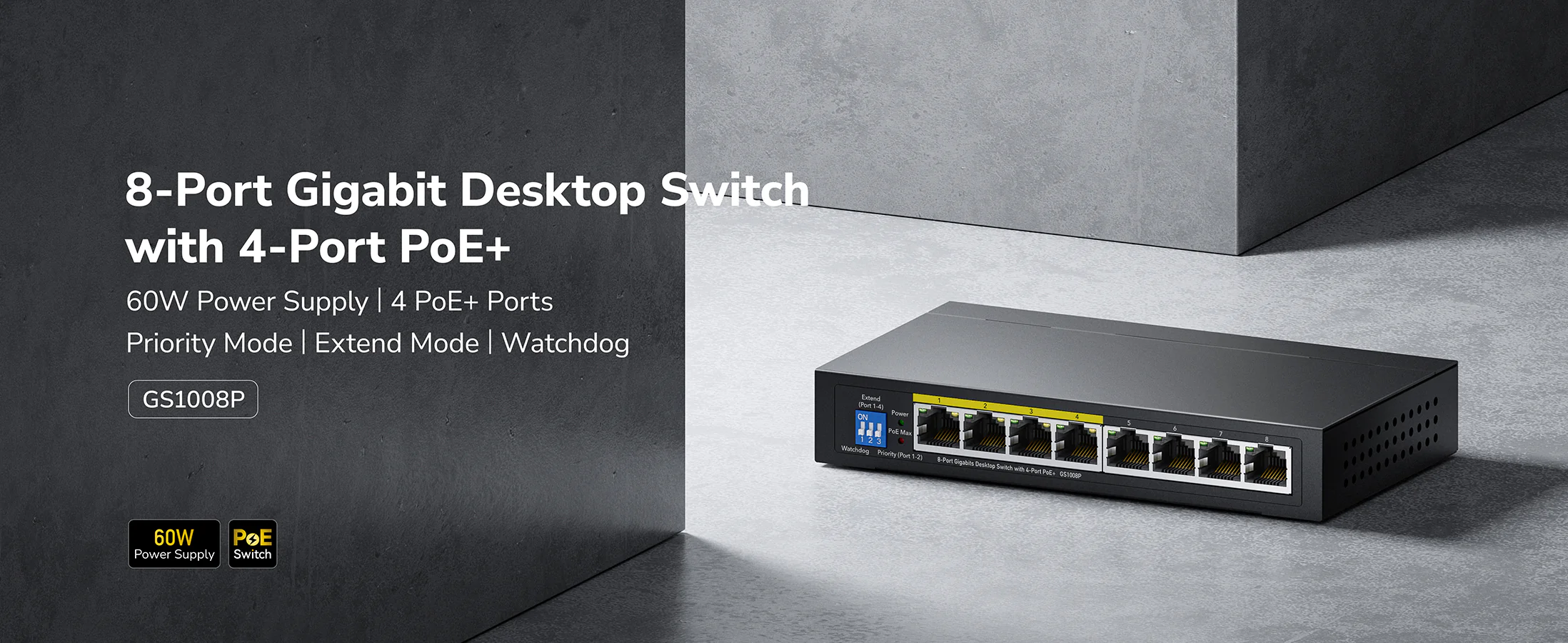

8-Port Gigabit Desktop Switch with 4-Port PoE+

GS1008P 1.0

A wall-mounted switch with a 60W power supply for PoE application and a silent cooling system, featuring priority mode, PoE extend mode, and watchdog function.

---

•  4× GbE with 802.3at/af Mode A PoE
•  4× GbE
•  60W Power Supply
•  Priority On/Off, Extend On/Off
•  Watchdog On/Off
•  PoE Max Status LED
•  Desktop, Wall-Mount
•  155×86×26 mm (6.1×3.39×1.02"

Model Version	GS1008P 1.0
Interfaces	Gigabit RJ45 Ports	8
	Gigabit RJ45 PoE Ports	#1~#4
	Max Power on a Single PoE Port	30W
	PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.
	Intelligent Power Management (PoE)	Automatically disconnect the lastly powered device when power exceeds budget.
	Shielded RJ45 Port	True
	Priority Mode Ports	#1~#2
	Extend Mode Ports	#1~#4
	LED	Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status
	Power Input	DC Jack
	Physical Buttons	Priority On/Off Extend On/Off PoE Watchdog On/Off
	Watchdog Note	The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	8192
	Max Switching Capacity	16 Gbps
	Max Forwarding Rate	11.904 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power	Power Methods	DC
	DC	54V⎓1.11A
	Power Adapter	Input: 100-240V~, 50/60Hz Output: 52V⎓1.11A
	Power Supply	60W
	Max Power Excluding PoE	5W
	Idle Power Consumption	1.5W
Switching	802.3 Protocols	802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE
	802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS
	L2 Features	IGMP Snooping Loop Prevention Loop Detection DSCP QoS 802.1p QoS
Reliability	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing
Mechanical	Dimension	155×86×26 mm 6.1×3.39×1.02 inches
	Product Weight	309.0 g (10.9 oz.)
	Casing Material	Metal
	Installation	Desktop Wall-mount
Package Content	GS1008P Power Adapter Power Cord Installation Guide
Ordering Information	Retail Package Dimension	197×119×81.5 mm 7.76×4.69×3.21 inches
	Retail Package Weight	EU: 859.2 g (30.31 oz.)
	Units per Carton	10
	Carton Net Weight	EU: 8.59 kg (18.94 lbs)
	Carton Gross Weight	EU: 9.1 kg (20.06 lbs)
	Carton Dimension	43×21.7×265 cm 16.93×8.54×104.33 inches
